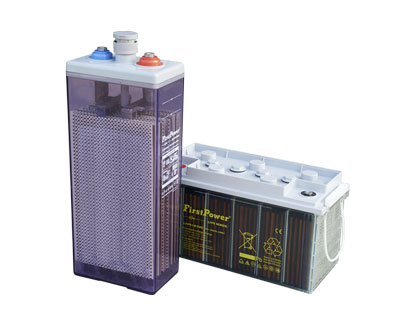

CFPS & LFPS[OPzS] Battery Series

Voltage: 2V, 6V & 12V    Capacity: 60AH~3000AH
Service life:   Designed floating service life 20 years at 20^oC/68^oF
                         Designed cycle life more than 1200 cycles at 80% DOD at 20^oC/68^oF

Battery Summary

The FirstPower CFPS(2V) and LFPS(6V/12V) series stationary batteries (OPzS battery) are the newly products which were developed at the end of 2005.

The performances meet the standard DIN40736 and IEC60896-11

Typical Applications

Telecommunication equipment
Electronic instruments
Fire alarm and security devices
UPS power supply
Solar power system
Wind power system

Characteristics

Positive plate: It is a tubular plate that can prevent the active material from falling off. The grid of positive plate is Pb-Sb multi-alloy
Separator: With the combined application of porous rubber and porous PVC, the separator has a high porosity and good corrosion-resistance
Acid-proof bolt: It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte.
The design life is more than 20 years
Ensuring sufficient electrolyte for battery discharge

Technical parameters

Environment temperature	-20℃～50℃
Environmental temperature for best utilization	25℃ +/- 5℃
Float charging voltage	2.25~2.30V/unit
Cycle charging voltage	2.40~2.45V/unit
Equalization voltage	2.45V/unit
Temperature adjustment coefficient	-3mV/℃/unit
Max charging current	0.20C₁₀A
Design service life	20 years(20℃)

General Technical Specifications

Model	Rated Voltage (V)	Rated Capacity (AH)	Dimensions（mm/in）								Weight ±4%(Kg)						Number of post of the same polarity
			Length		Width		Height		Total Height		Dry		wet		Acid weight(d=1.24kg/L)
			mm	in	mm	in	mm	in	mm	in	Kg	Lbs	Kg	Lbs	Kg	Lbs
CFPS2100	2	100	103	4.06	206	8.11	354	13.94	409	16.1	8.5	18.7	13.5	29.8	5	11	1
CFPS2150	2	150	103	4.06	206	8.11	354	13.94	409	16.1	11	24.3	15	33.1	4.5	9.9	1
CFPS2200	2	200	103	4.06	206	8.11	354	13.94	409	16.1	13.5	29.8	17.5	38.6	4	8.8	1
CFPS2250	2	250	124	4.88	206	8.11	354	13.94	409	16.1	16	35.3	21	46.3	5	11	1
CFPS2300	2	300	145	5.71	206	8.11	354	13.94	409	16.1	18.5	40.8	24.5	54	6	13.2	1
CFPS2350	2	350	124	4.88	206	8.11	470	18.5	525	20.67	20	44.1	27	59.5	7	15.4	1
CFPS2420	2	420	145	5.71	206	8.11	470	18.5	525	20.67	24.5	54	33	72.8	8.5	18.7	1
CFPS2500	2	500	166	6.54	206	8.11	470	18.5	525	20.67	26	57.3	36	79.4	10	22	1
CFPS2600	2	600	145	5.71	206	8.11	645	25.39	700	27.56	31	68.3	43	94.8	12	26.5	1
CFPS2770	2	770	253	9.96	210	8.27	472	18.58	527	20.75	42.5	93.7	57.5	126.8	15	33.1	1
CFPS2800	2	800	191	7.52	210	8.27	645	25.39	700	27.56	42	92.6	58	127.9	16	35.3	2
CFPS21000	2	1000	233	9.17	210	8.27	645	25.39	700	27.56	52	114.6	72	158.7	20	44.1	2
CFPS21200	2	1200	275	10.83	210	8.27	645	25.39	700	27.56	62	136.7	86	189.6	24	52.9	2
CFPS21500	2	1500	275	10.83	210	8.27	795	31.3	850	33.46	75	165.3	105	231.5	30	66.1	2
CFPS22000	2	2000	399	15.71	210	8.27	771	30.35	826	32.52	108	238.1	150	330.7	42	92.6	3
CFPS22500	2	2500	487	19.17	212	8.35	771	30.35	826	32.52	130	286.6	183	403.4	52	114.6	4
CFPS23000	2	3000	576	22.68	212	8.35	771	30.35	826	32.52	157	346.1	220	485	63	138.9	4
LFPS1220	12	20	197	7.76	165	6.5	155	6.1	169	6.65	8.5	18.7	13	28.7	4.5	9.9	1
LFPS1230	12	30	260	10.24	170	6.69	201	7.91	215	8.46	11	24.3	15	33.1	5.5	12.1
LFPS1240	12	40									13.5	29.8	20	44.1	6.5	14.3
LFPS1260	12	60									17.5	38.6	24.5	54	7	15.4
LFPS1280	12	80	330	12.99	171	6.73	217	8.54	235	9.25	21	46.3	28	61.7	7	15.4
LFPS12100	12	100	409	16.1	176	6.93	205	8.07	225	8.86	27	59.5	34.5	76.1	7.5	16.5	1
LFPS12120	12	120	485	19.09	172	6.77	220	8.66	240	9.45	32.5	71.7	44.5	98.1	12	26.5
LFPS12140	12	140	532	20.94	207	8.15	204	8.03	224	8.82	38	83.8	53	116.8	15	33.1
LFPS12160	12	160	522	20.55	238	9.37	203	7.99	221	8.7	42.8	94.4	60.5	133.4	17.7	39
LFPS12180	12	180	522	20.55	238	9.37	203	7.99	221	8.7	47.6	104.9	65	143.3	19.9	43.9
LFPS12200	12	200	521	20.51	269	10.59	203	7.99	223	8.78	50	110.2	73	160.9	23	50.7
LFPS680	6	80	194	7.64	170	6.69	205	8.07	210	8.27	12.2	26.9	16.5	36.4	4.3	9.5	1
LFPS6100	6	100	260	10.24	180	7.09	235	9.25	250	9.84	13.6	30	19	41.9	5.4	11.9
LFPS6120	6	120	260	10.24	180	7.09	235	9.25	250	9.84	15.5	34.2	22	48.5	6.5	14.3
LFPS6140	6	140	307	12.09	169	6.65	208	8.19	225	8.86	18.7	41.2	27.5	60.6	8.3	18.3	1
LFPS6160	6	160	307	12.09	169	6.65	208	8.19	225	8.86	21.2	46.7	30	66.1	8.8	19.4
LFPS6180	6	180	295	11.61	178	7.01	330	12.99	348	13.7	25.5	56.2	36.5	80.5	9	19.8
LFPS6200	6	200	295	11.61	178	7.01	330	12.99	348	13.7	27	59.5	36	79.4	9	19.8
LFPS6250	6	250	295	11.61	178	7.01	390	15.35	408	16.06	29	63.9	40.5	89.3	11.5	25.4
LFPS6300	6	300	295	11.61	178	7.01	390	15.35	408	16.06	42.5	93.7	55	121.3	12.5	27.6

We are updating the datasheet now. Pls contact the concerned person for details.
