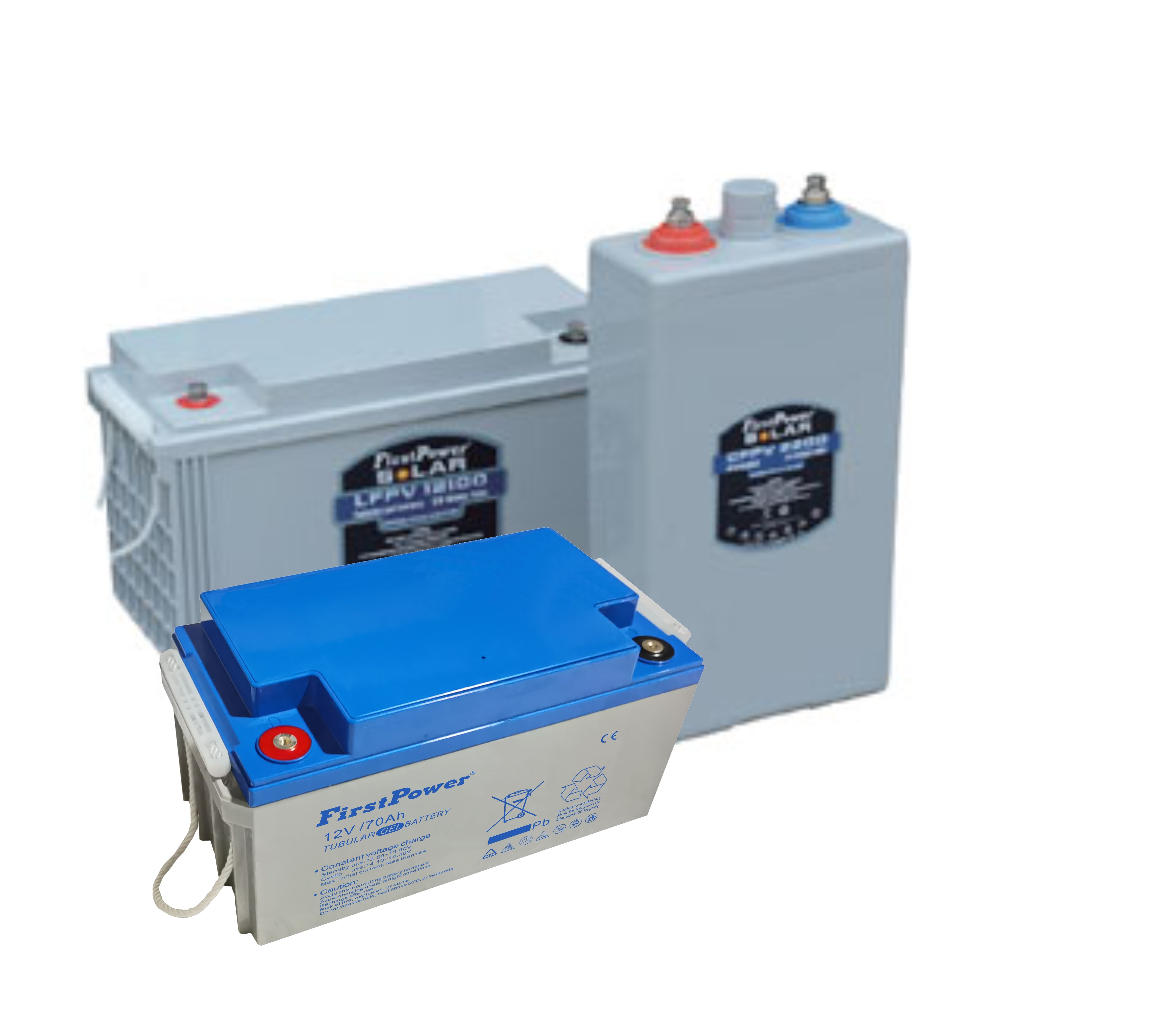

CFPV & LFPV(OPzV) Battery Series

Voltage: 2V, 6V, 12V    Capacity: 60AH~3000AH
Service life:   Designed floating service life 20 years at 20^oC/68^oF
                         Designed cycle life more than 2000 cycles at 80% DOD at 20^oC/68^oF

Battery Summary

The FirstPower CFPV (OPzV) series stationary batteries are the newly products which were developed at the end of 2005.

The performances meet the standard DIN40742

Typical Applications

Telecommunication equipment
Electronic instruments
Fire alarm and security devices
UPS power supply
Solar power system
Wind power system

Test report: CFPV2200 Cycle Test @100% D.O.D.

Characteristics

Gelled electrolyte, no flow, no leakage or no gradation of sulfuric acid.
The positive plate is tubular plate, which can effectively prevent the active materials from falling off.
PVC-SiO2 separator, which is special for gel battery with tiny holes.
The separator has high volume porosity, low electrical resistance and excellent wettability
Maintenance-free during the whole service life.
Low self discharge rate
Proof against deep discharge according to DIN 43539 T5

Technical parameters

Environment temperature	-20℃～50℃
Environmental temperature for best utilization	25℃ +/- 5℃
Float charging voltage	2.25~2.30V/unit
Cycle charging voltage	2.30~2.35V/unit
Equalization voltage	2.35V/unit
Temperature adjustment coefficient	-3mV/℃/unit
Max charging current	0.20C₁₀A
Design service life	20 years(20℃)
Self-discharge rate	Less than 40% after 2-year storage at 20℃
Recover performance after deepdischarge	The battery can be recharged to 95% of the rated capacity after 12 hour deep discharge
The gas recombination efficiency exceeds	Less than 40% after 2-year storage at 20^oC

General Technical Specifications

Model	Rated Voltage (V)	Rated Capacity (AH)	Dimensions（mm/in）								Weight ±5%(Kg)
			Length		Width		Height		Total Height		Weight ±5%(Kg)
			mm	in	mm	in	mm	in	mm	in	Kg	Lbs
CFPV2200	2	200	103	4.06	206	8.11	354	13.94	390	15.35	16.5	36.4
CFPV2250	2	250	124	4.88	206	8.11	354	13.94	390	15.35	21.5	47.4
CFPV2300	2	300	145	5.71	206	8.11	354	13.94	390	15.35	23.5	51.8
CFPV2350	2	350	124	4.88	206	8.11	470	18.5	506	19.92	26.5	58.4
CFPV2420	2	420	145	5.71	206	8.11	470	18.5	506	19.92	30.8	67.9
CFPV2500	2	500	166	6.54	206	8.11	470	18.5	506	19.92	35	77.2
CFPV2600	2	600	145	5.71	206	8.11	645	25.39	681	26.81	41.5	91.5
CFPV2770	2	770	253	9.96	210	8.27	470	18.5	506	19.92	56.5	124.6
CFPV2800	2	800	191	7.52	210	8.27	645	25.39	681	26.81	57	125.7
CFPV21000B	2	1000	191	7.52	206	8.11	646	25.4	681	26.8	67	147.4
CFPV21000	2	1000	233	9.17	210	8.27	645	25.39	681	26.81	68.6	151.2
CFPV21200B	2	1200	233	9.17	210	8.27	645	25.4	681	26.8	82	180
CFPV21200	2	1200	275	10.83	210	8.27	645	25.39	681	26.81	82	180.8
CFPV21500	2	1500	275	10.83	210	8.27	795	31.3	831	32.72	101	222.7
CFPV22000	2	2000	399	15.71	210	8.27	772	30.39	807	31.77	135	297.6
CFPV22500	2	2500	487	19.17	212	8.35	772	30.39	807	31.77	174	383.6
CFPV23000	2	3000	576	22.68	212	8.35	772	30.39	807	31.77	209	460.8
CFPV23350	2	3350	576	22.7	212	8.35	772	30.4	807	31.8	290	506
LFPV1220	12	20	197	7.76	165	6.5	155	6.1	169	6.65	12.5	27.6
LFPV1230	12	30	260	10.24	170	6.69	201	7.91	215	8.46	16	35.3
LFPV1240	12	40									20.5	45.2
LFPV1260	12	60									23.5	51.8
LFPV1240S	12	40	197	7.76	165	6.53	157	6.18	157	6.18
LFPV1265	12	65	348	13.7	167	6.75	179	7.05	179	7.05
LFPV1270	12	70	348	13.7	167	6.75	179	7.05	179	7.05
LFPV1280	12	80	330	12.99	171	6.73	217	8.54	235	9.25	27.5	60.6
LFPV12100	12	100	409	16.1	176	6.93	205	8.07	225	8.86	36	79.4
LFPV12120	12	120	485	19.09	172	6.77	220	8.66	240	9.45	46	101.4
LFPV12140	12	140	532	20.94	207	8.15	204	8.03	224	8.82	55.5	122.4
LFPV12160	12	160	522	20.55	238	9.37	203	7.99	221	8.7	61	134.5
LFPV12180	12	180	522	20.55	238	9.37	203	7.99	221	8.7	64	141.1
LFPV12200	12	200	521	20.51	269	10.59	203	7.99	221	8.7	71.5	157.6
LFPV680	6	80	194	7.64	170	6.69	205	8.07	210	8.27	15.5	34.2
LFPV6100	6	100	260	10.24	180	7.09	235	9.25	250	9.84	18	39.7
LFPV6120	6	120	260	10.24	180	7.09	235	9.25	250	9.84	20.5	45.2
LFPV6140	6	140	307	12.09	169	6.65	208	8.19	225	8.86	24.5	54
LFPV6160	6	160	307	12.09	169	6.65	208	8.19	225	8.86	28.5	62.8
LFPV6180	6	180	295	11.61	178	7.01	330	12.99	348	13.7	32.5	71.7
LFPV6200	6	200	295	11.61	178	7.01	330	12.99	348	13.7	40.5	89.3
LFPV6250	6	250	295	11.61	178	7.01	390	15.35	408	16.06	46.5	102.5
LFPV6300	6	300	295	11.61	178	7.01	390	15.35	408	16.06	53.5	117.9

We are updating the datasheet now. Pls contact the concerned person for details.
