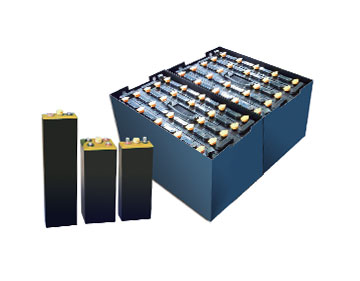

Traction Battery Series
Voltage : 2V Capacity : 46AH to 630AH
Cycle Life: More than 1600 cycles up to 80% depth of discharge.

Benefits

  • Assembled in a high grade plastic container.
  • Tubular positive plates and pasted negative plates.
  • Longer life in cyclic use-more than 1600 cycles up to 80% depth of discharge.
  • Low energy costs.
  • Low water costs.
  • Avoidance of insufficient discharging and of overcharging.
  • Suitable for all weather conditions.



Typical Applications

  • Forklift
  • Tow truck
  • Power trolley
  • Lifting platforms and other industrial traction application.



Maintenance:

  • Allow the battery to cool down after every charging.
  • Top up the battery at the end of the charge cyclic with the charging on and allow the battery to gas freely so that the specific gravity becomes uniform in the cell. Never add water to a discharged battery
  • Keep the battery clean and dry. Check the terminal connectors for tightness.



General Technical Specifications (BS, DIN Specifications)

CellType Nominal Capacity(Ah) Charging Intensity(A) Dimension(mm) Weight ±4%(Kg)
5h 1h 0.5h Intial Finish Length Width Height TotalHeight Dry Wet
2FPB46 46 31 23 8 2 45 158 200 225 2.5 3.8
3FPB70 70 45 35 12 3 61 3.2 5.0
4FPB92 92 60 46 16 4 77 5.0 6.5
5FPB115 115 76 58 20 5 93 6.0 7.8
6FPB138 138 90 69 23 6 109 7.0 9.1
7FPB162 162 105 80 27 7 125 7.6 10.5
8FPB185 185 120 92 31 8 141 9.0 11.2
9FPB208 208 135 105 35 9 157 10.0 13.2
10FPB230 230 150 116 39 10 173 11.1 14.5

2FPB65 65 43 32 11 3 45 158 258 283 3.4 5.0
3FPB96 96 62 48 16 4 61 4.3 6.7
4FPB128 128 83 65 22 6 77 6.3 8.2
5FPB160 160 105 80 27 7 93 7.3 9.5
6FPB192 192 125 96 32 8 109 8.4 11.0
7FPB225 225 146 112 38 10 125 9.0 12.8
8FPB258 258 166 128 43 11 141 11.5 15.5
9FPB290 290 188 145 48 12 157 13.0 16.9
10FPB320 320 208 160 54 14 173 13.2 18.5

2FPB85 85 55 42 15 4 45 158 325 350 4.3 6.6
3FPB128 128 82 63 21 6 61 5.4 8.5
4FPB168 168 110 85 28 7 77 8.3 10.7
5FPB210 210 138 105 35 9 93 10.0 13.0
6FPB252 252 165 125 42 11 109 12.0 15.8
7FPB295 295 192 146 50 13 125 12.2 17.0
8FPB336 336 220 168 56 14 141 16.2 21.5
9FPB378 378 245 188 64 16 157 18.0 23.0
10FPB420 420 275 208 70 18 173 19.0 24.0

2FPB110 110 72 55 20 5 45 158 396 421 6.0 8.0
3FPB165 165 108 83 28 7 61 8.3 10.3
4FPB220 220 145 110 37 10 77 10.0 13.0
5FPB275 275 180 138 46 12 93 12.0 15.2
6FPB330 330 215 165 55 14 109 14.0 18.5
7FPB385 385 251 193 65 17 125 16.0 22.0
8FPB440 440 288 220 75 19 141 18.0 24.5
9FPB495 495 322 248 84 21 157 20.0 27.0
10FPB550 550 360 275 92 23 173 22.0 30.0
11FPB605 605 394 303 103 25 189 24.0 34.5
12FPB660 660 430 332 111 27 205 26.0 38.5

2FPB130 130 84 64 23 6 45 158 455 480 6.5 9.0
3FPB195 195 125 96 32 9 61 8.0 11.5
4FPB260 260 170 132 43 11 77 12.3 15.8
5FPB325 325 214 163 54 14 93 16.0 19.5
6FPB390 390 255 193 65 17 109 19.5 23.5
7FPB455 455 296 225 77 20 125 22.5 26.5
8FPB520 520 340 260 87 22 141 26.0 30.5
9FPB585 585 379 291 99 25 157 30.0 34.5
10FPB650 650 426 322 108 28 173 32.5 37.5
11FPB715 715 470 358 119 31 189 36.5 41.5
12FPB780 780 511 387 130 34 205 39.5 44.5

2FPB150 150 98 75 27 7 45 158 511 536 6.8 9.5
3FPB225 225 147 113 38 10 61 9.5 14.0
4FPB300 300 198 150 50 14 77 15.5 18.0
5FPB375 375 245 188 63 16 93 17.0 22.0
6FPB450 450 293 225 75 19 109 20.0 25.0
7FPB525 525 342 263 89 23 125 25.0 30.5
8FPB600 600 393 300 102 26 141 29.5 34.5
9FPB675 675 439 338 115 29 157 33.0 38.0
10FPB750 750 491 375 125 31 173 36.5 41.5
11FPB825 825 537 413 140 34 189 39.5 45.5
12FPB900 300 195 151 50 12 205 41.5 48.0

2FPB170 170 110 84 30 8 46 158 567 592 7.5 11.5
3FPB255 255 163 126 42 12 61 11.5 15.5
4FPB340 340 223 172 57 14 77 16.0 20.0
5FPB425 425 279 213 71 18 93 20.5 24.5
6FPB510 510 334 253 85 22 109 24.5 29.5
7FPB595 595 387 294 101 26 125 29.0 34.0
8FPB680 680 445 340 113 28 141 33.0 38.5
9FPB765 765 496 380 130 32 157 34.5 40.5
10FPB850 850 557 421 142 36 173 41.5 47.5
11FPB935 935 614 468 156 40 189 48.5 52.5
12FPB1020 1020 668 506 170 45 205 50.5 57.5

2FPB200 200 130 100 34 9 45 158 603 628 8.0 12.5
3FPB300 300 196 150 51 13 61 11.0 15.5
4FPB400 400 260 200 68 17 77 16.0 20.5
5FPB500 500 327 250 84 21 93 19.5 24.5
6FPB600 600 391 300 102 25 109 25.5 30.5
7FPB700 700 456 352 118 29 125 29.5 35.0
8FPB800 800 524 397 133 35 141 36.0 41.5
9FPB900 900 582 445 159 42 157 39.0 44.5
10FPB1000 1000 641 492 164 47 173 45.5 51.5
11FPB1100 1100 720 557 183 46 189 49.5 55.5
12FPB1200 1200 789 600 200 51 205 53.5 60.5

2FPB210 210 136 104 37 10 45 158 683 708 9.0 13.5
3FPB315 315 202 155 52 15 61 13.5 18.5
4FPB420 420 275 213 70 18 77 19.5 24.5
5FPB525 525 345 263 88 23 93 23.0 28.0
6FPB630 630 413 313 105 28 109 30.0 35.5
7FPB735 735 478 364 125 32 125 34.5 40.5
8FPB840 840 550 420 140 35 141 39.0 45.5
9FPB945 945 613 470 160 40 157 45.0 51.5
10FPB1050 1050 688 520 175 45 173 48.0 54.5
11FPB1155 1155 759 578 193 50 189 52.5 60.0
12FPB1260 1260 825 625 210 55 205 56.0 64.5
CellType Nomina lCapacity(Ah) Charging Intensity(A) Dimension(mm) Weight (Kg)±4%
5h 1h 0.5h Intial Finish Length Width Height TotalHeight Dry Wet
2FPD100 100 65 50 17 5 45 198 265 290 4.8 7.2
3FPD150 150 96 72 25 7 64 7.1 9.5
4FPD200 200 130 100 35 9 82 9.6 11.9
5FPD250 250 164 125 42 11 101 11.6 14.2
6FPD300 300 196 150 50 13 118 13.5 17.0
7FPD350 350 229 175 60 15 137 16.0 21.0
8FPD400 400 260 200 67 17 155 18.3 22.2
9FPD450 450 295 225 75 19 172 21.0 26.2
10FPD500 500 325 250 85 21 192 22.8 30.0

2FPD120 120 78 65 20 6 45 198 330 355 6.6 9.3
3FPD180 180 118 98 30 9 64 9.5 13.5
4FPD240 240 156 130 40 12 82 12.2 15.3
5FPD300 300 195 163 50 15 101 15.0 18.6
6FPD360 360 239 195 60 18 118 17.4 23.8
7FPD420 420 275 228 72 21 137 20.5 27.3
8FPD480 480 315 260 80 24 155 23.0 31.5
9FPD540 540 350 293 92 27 172 25.5 32.5
10FPD600 600 390 325 100 30 192 28.0 40.2

2FPD160 160 105 80 27 7 45 198 400 425 8.0 10.1
3FPD240 240 156 120 40 10 64 11.2 15.0
4FPD320 320 208 160 54 14 82 14.5 18.7
5FPD400 400 260 200 67 17 101 17.7 23.0
6FPD480 480 315 240 80 20 118 20.5 27.0
7FPD560 560 365 280 94 24 137 24.0 32.0
8FPD640 640 418 320 107 27 155 27.5 36.0
9FPD720 720 468 360 120 30 173 33.0 41.0
10FPD800 800 520 400 13.5 34 192 34.5 45.2

2FPD180 180 120 92 30 7 45 198 465 490 9.5 11.5
3FPD270 270 180 138 46 11 64 13.0 16.5
4FPD360 360 240 185 61 15 82 17.0 22.2
5FPD450 450 300 230 76 19 101 21.0 26.5
6FPD540 540 360 276 92 23 119 24.0 31.5
7FPD630 630 420 322 107 27 137 28.0 36.5
8FPD720 720 478 368 122 30 155 32.5 43.6
9FPD810 810 538 415 138 34 173 35.5 48.0
10FPD900 900 596 460 153 38 192 39.5 53.0

2FPD210 210 120 92 30 7 45 198 510 535 10.2 12.5
3FPD315 315 180 138 46 11 64 13.8 17.8
4FPD420 420 240 185 61 15 82 17.8 23.8
5FPD525 525 300 230 76 19 101 22.7 28.8
6FPD630 630 360 276 92 23 119 25.8 34.2
7FPD720 720 420 322 107 27 137 29.6 38.9
8FPD820 820 478 368 122 30 155 34.2 46.1
9FPD920 920 538 415 138 34 173 37.6 51.3
10FPD1000 1000 596 460 153 38 192 41.4 56.4

2FPD230 230 149 114 41 11 45 198 540 565 10.9 13.5
3FPD345 345 221 170 57 16 65 14.6 19.6
4FPD460 460 301 233 77 19 83 18.6 25.3
5FPD575 575 378 288 96 25 101 19.7 31.4
6FPD690 690 452 342 115 30 119 27.5 36.8
7FPD805 805 524 398 136 35 137 31.3 42.6
8FPD920 920 602 460 153 38 155 35.8 48.2
9FPD1035 1035 671 515 175 44 173 39.7 53.8
10FPD1150 1150 753 570 192 49 192 43.5 59.4

2FPD250 250 164 124 42 11 45 198 665 690 11.4 14.5
3FPD375 375 246 188 63 16 65 15.2 20.8
4FPD500 500 327 250 91 23 83 19.8 26.5
5FPD625 625 409 314 106 27 101 20.5 32.6
6FPD750 750 494 375 126 34 119 28.3 38.5
7FPD875 875 573 439 146 38 137 32.9 44.6
8FPD1000 1000 652 500 167 42 155 37.2 50.8
9FPD1125 1125 733 564 190 50 173 40.9 55.6
10FPD1250 1250 818 625 213 54 192 44.8 61.5

2FPD280 280 183 140 47 12 45 198 680 705 13.8 18.5
3FPD420 420 274 210 72 17 65 17.6 24.5
4FPD560 560 365 282 94 23 83 22.7 31.6
5FPD700 700 455 351 119 30 101 23.7 38.2
6FPD840 840 544 415 148 40 119 32.5 43.5
7FPD980 980 628 482 161 46 137 36.5 49.5
8FPD1120 1120 733 567 187 47 155 41.5 58.5
9FPD1260 1260 828 630 210 54 173 44.5 61.5
10FPD1400 1400 917 694 233 61 192 47.5 65.5

2FPD310 310 203 155 52 13 45 198 715 740 14.5 19.6
3FPD465 465 301 231 79 20 65 18.2 25.6
4FPD620 620 406 307 103 27 83 23.2 32.4
5FPD775 775 509 388 129 33 101 24.5 39.6
6FPD930 930 609 461 155 41 119 34.5 48.3
7FPD1085 1085 713 543 181 47 137 40.5 55.4
8FPD1240 1240 808 622 209 55 155 46.2 64.7
9FPD1395 1395 913 698 238 60 173 51.5 72.8
10FPD1550 1550 1008 777 263 66 192 54.5 75.6

We are updating the datasheet now. Pls contact the concerned person for details.
